一、2CG高温油泵整机 点
该泵具有良好的自吸性，每次开泵前不需灌入液体，结构简单紧凑，使用、保养方便。该泵靠输送液体自动润滑日常工作时，无需另加润滑油，用弹性轴器传递动力，可补偿因安装时所引起的微小偏差，在受液压冲击时起到良好的缓冲作用。
二、2CG高温油泵整机用途
本系列高温泵适用于输送温度在150℃～300℃，粘度为5×10-6-1.5×10-6m2/S(5-1500cst)的液体。该泵不适用于输送有、硬质点颗粒或含纤维的、高挥发性、闪点低的液体，如有 殊需要，可定做。
三、2CG高温油泵整机性能参数
|
型号 Model |
流量Flow Capacity |
压力Mpa |
吸入高度m |
口径 |
电机功率 kw |
|
|
m3/h |
L/min |
|||||
|
2CG-1 |
1 |
16.7 |
1.0 /1.6 |
5 |
Φ25 |
1.5 |
|
2CG-1.5 |
1.5 |
25 |
1.0/1.6 |
5 |
Φ25 |
1.5/2.2 |
|
2CG-2 |
2 |
33.3 |
1.0/1.6 |
5 |
Φ25 |
2.2/3 |
|
2CG-3 |
3 |
50 |
1.0/1.6 |
5 |
Φ25 |
3 |
|
2CG-5 |
5 |
83.3 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-6 |
6 |
100 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-7.5 |
7.5 |
125 |
1.0/1.6 |
5 |
Φ50 |
5.5 |
|
2CG-10 |
10 |
167 |
1.0/1.6 |
5 |
Φ50 |
5.5/7.5 |
|
2CG-12 |
12 |
200 |
1.0/1.6 |
5 |
Φ55 |
5.5/7.5 |
|
2CG-15 |
15 |
250 |
1.0/1.6 |
5 |
Φ55 |
7.5 /11 |
|
2CG-18 |
18 |
300 |
1.0/1.6 |
5 |
Φ55 |
7.5/11 |
|
2CG-18 |
18 |
300 |
1.0 |
4.5 |
Φ70 |
7.5 |
|
2CG-29 |
29 |
483.3 |
1.0 |
4.5 |
Φ70 |
11 |
|
2CG-38 |
38 |
633 |
1.0 |
4 |
Φ100 |
22 |
|
2CG-58 |
58 |
960 |
1.0 |
3.5 |
Φ100 |
30 |
|
2CG-72 |
72 |
1200 |
0.6 |
4 |
Φ150 |
37 |
|
2CG-96 |
96 |
1600 |
0.6 |
4 |
Φ150 |
45 |
|
2CG-112 |
112 |
1800 |
0.6 |
2.5 |
Φ200 |
55 |
|
2CG-150 |
150 |
2500 |
0.6 |
2.5 |
Φ200 |
75 |

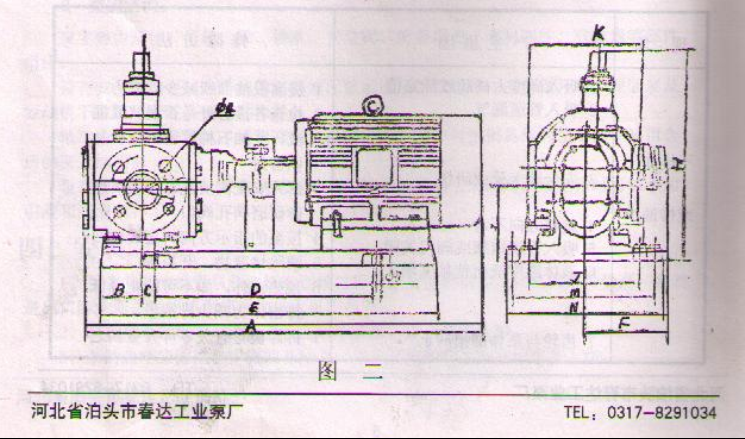

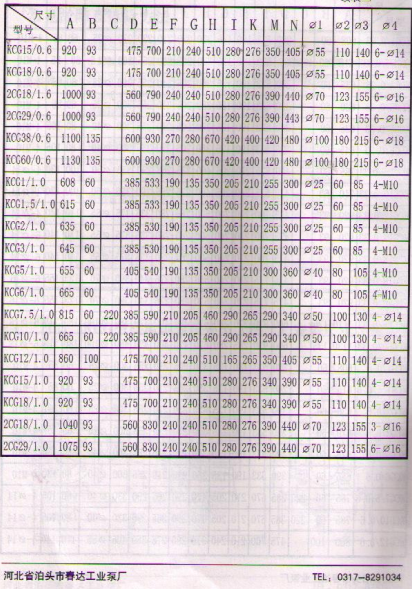

2CG高温齿轮泵安装尺寸
|
型号 Model |
流量Flow Capacity |
压力Mpa |
吸入高度m |
口径 |
电机功率 kw |
|
|
m3/h |
L/min |
|||||
|
2CG-1 |
1 |
16.7 |
1.0 /1.6 |
5 |
Φ25 |
1.5 |
|
2CG-1.5 |
1.5 |
25 |
1.0/1.6 |
5 |
Φ25 |
1.5/2.2 |
|
2CG-2 |
2 |
33.3 |
1.0/1.6 |
5 |
Φ25 |
2.2/3 |
|
2CG-3 |
3 |
50 |
1.0/1.6 |
5 |
Φ25 |
3 |
|
2CG-5 |
5 |
83.3 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-6 |
6 |
100 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-7.5 |
7.5 |
125 |
1.0/1.6 |
5 |
Φ50 |
5.5 |
|
2CG-10 |
10 |
167 |
1.0/1.6 |
5 |
Φ50 |
5.5/7.5 |
|
2CG-12 |
12 |
200 |
1.0/1.6 |
5 |
Φ55 |
5.5/7.5 |
|
2CG-15 |
15 |
250 |
1.0/1.6 |
5 |
Φ55 |
7.5 /11 |
|
2CG-18 |
18 |
300 |
1.0/1.6 |
5 |
Φ55 |
7.5/11 |
|
2CG-18 |
18 |
300 |
1.0 |
4.5 |
Φ70 |
7.5 |
|
2CG-29 |
29 |
483.3 |
1.0 |
4.5 |
Φ70 |
11 |
|
2CG-38 |
38 |
633 |
1.0 |
4 |
Φ100 |
22 |
|
2CG-58 |
58 |
960 |
1.0 |
3.5 |
Φ100 |
30 |
|
2CG-72 |
72 |
1200 |
0.6 |
4 |
Φ150 |
37 |
|
2CG-96 |
96 |
1600 |
0.6 |
4 |
Φ150 |
45 |
|
2CG-112 |
112 |
1800 |
0.6 |
2.5 |
Φ200 |
55 |
|
2CG-150 |
150 |
2500 |
0.6 |
2.5 |
Φ200 |
75 |
|
型号 Model |
流量Flow Capacity |
压力Mpa |
吸入高度m |
口径 |
电机功率 kw |
|
|
m3/h |
L/min |
|||||
|
2CG-1 |
1 |
16.7 |
1.0 /1.6 |
5 |
Φ25 |
1.5 |
|
2CG-1.5 |
1.5 |
25 |
1.0/1.6 |
5 |
Φ25 |
1.5/2.2 |
|
2CG-2 |
2 |
33.3 |
1.0/1.6 |
5 |
Φ25 |
2.2/3 |
|
2CG-3 |
3 |
50 |
1.0/1.6 |
5 |
Φ25 |
3 |
|
2CG-5 |
5 |
83.3 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-6 |
6 |
100 |
1.0/1.6 |
5 |
Φ40 |
4 |
|
2CG-7.5 |
7.5 |
125 |
1.0/1.6 |
5 |
Φ50 |
5.5 |
|
2CG-10 |
10 |
167 |
1.0/1.6 |
5 |
Φ50 |
5.5/7.5 |
|
2CG-12 |
12 |
200 |
1.0/1.6 |
5 |
Φ55 |
5.5/7.5 |
|
2CG-15 |
15 |
250 |
1.0/1.6 |
5 |
Φ55 |
7.5 /11 |
|
2CG-18 |
18 |
300 |
1.0/1.6 |
5 |
Φ55 |
7.5/11 |
|
2CG-18 |
18 |
300 |
1.0 |
4.5 |
Φ70 |
7.5 |
|
2CG-29 |
29 |
483.3 |
1.0 |
4.5 |
Φ70 |
11 |
|
2CG-38 |
38 |
633 |
1.0 |
4 |
Φ100 |
22 |
|
2CG-58 |
58 |
960 |
1.0 |
3.5 |
Φ100 |
30 |
|
2CG-72 |
72 |
1200 |
0.6 |
4 |
Φ150 |
37 |
|
2CG-96 |
96 |
1600 |
0.6 |
4 |
Φ150 |
45 |
|
2CG-112 |
112 |
1800 |
0.6 |
2.5 |
Φ200 |
55 |
|
2CG-150 |
150 |
2500 |
0.6 |
2.5 |
Φ200 |
75 |
